Description
Metric Male 24°cone Bulkhead is a precision-engineered fitting designed for high-performance fluid systems. Fully compatible with ISO tube standards, it ensures secure, leak-free, and vibration-resistant connections, making it the ideal choice for durable and long-lasting hydraulic assemblies in industrial and mobile equipment.

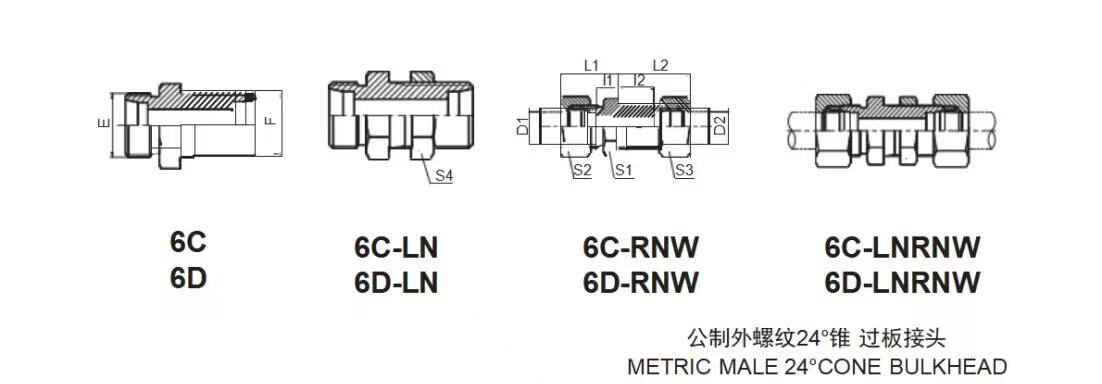

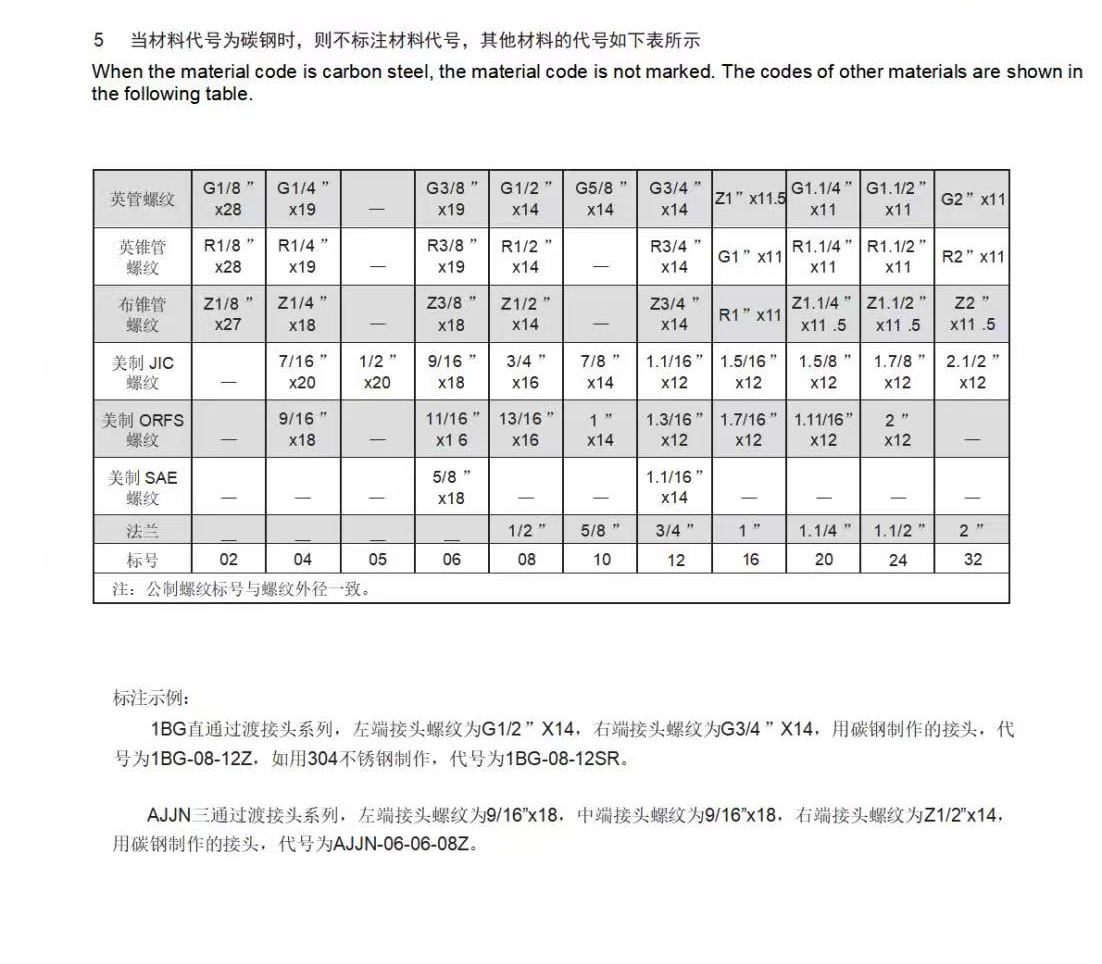

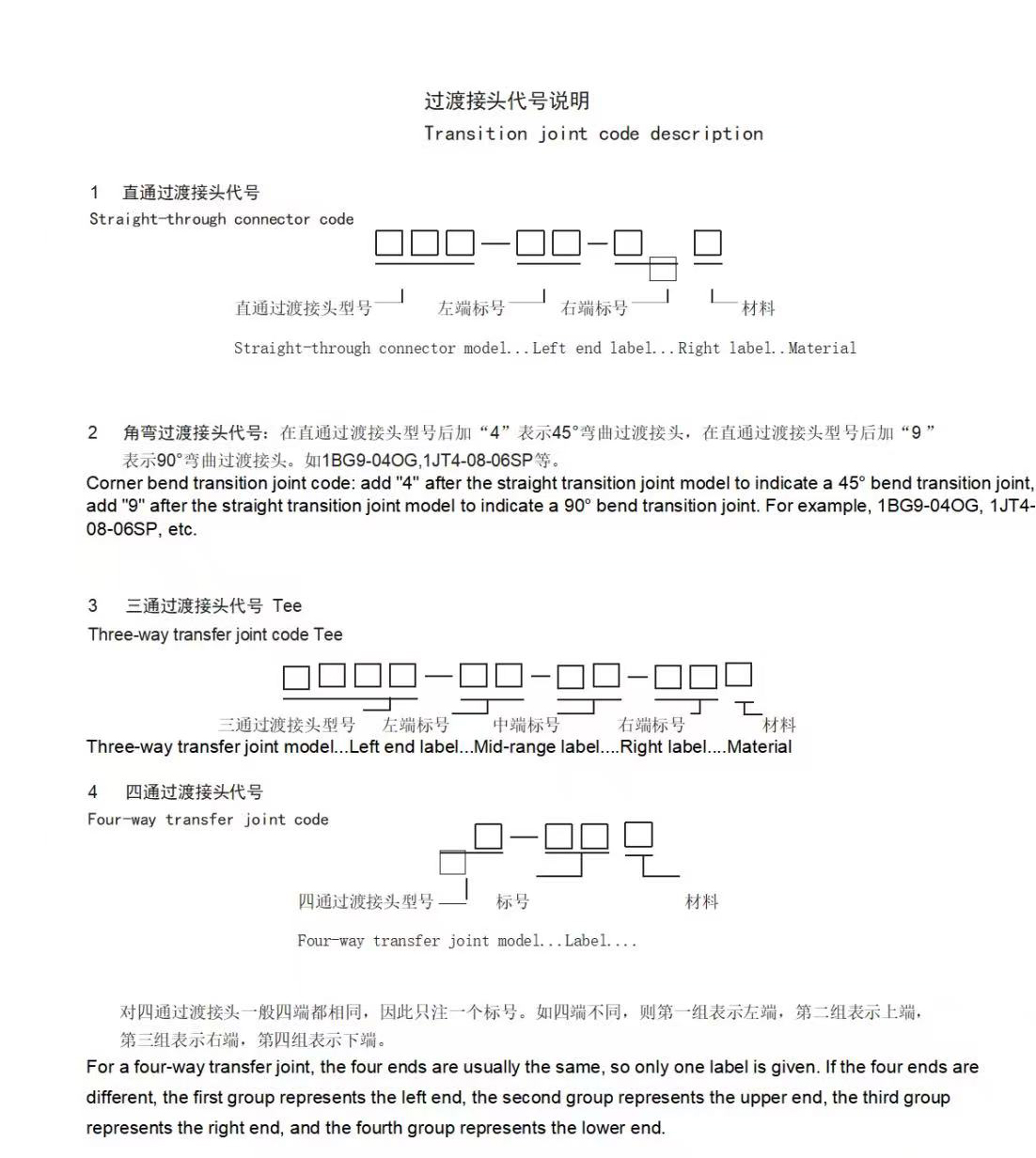

| PART NO. | THREAD | TUBE | DIMENSIONS | |||||||||||
| BODY | ASSEMBLY | ASSEMBLY | ASSEMBLY | E | F | D1 | D2 | l1 | l2 | L1 | L2 | S1 | S2,S3 | S4 |
| 6C-12Z | 6C-12LNZ | 6C-12RNW | 6C-12LNRNW | M12X1.5 | M12X1.5 | 6 | 6 | 7 | 27 | 22 | 42 | 17 | 14 | 17 |
| 6C-14Z | 6C-14LNZ | 6C-14RNW | 6C-14LNRNW | M14X1.5 | M14X1.5 | 8 | 8 | 8 | 27 | 23 | 42 | 19 | 17 | 19 |
| 6C-16Z | 6C-16LNZ | 6C-16RNW | 6C-16LNRNW | M16X1.5 | M16X1.5 | 10 | 10 | 10 | 28 | 25 | 43 | 22 | 19 | 22 |
| 6C-18Z | 6C-18LNZ | 6C-18RNW | 6C-18LNRNW | M18X1.5 | M18X1.5 | 12 | 12 | 10 | 29 | 25 | 44 | 24 | 22 | 24 |
| 6C-22Z | 6C-22LNZ | 6C-22RNW | 6C-22LNRNW | M22X1.5 | M22X1.5 | 15 | 15 | 12 | 31 | 27 | 46 | 27 | 27 | 30 |
| 6C-26Z | 6C-26LNZ | 6C-26RNW | 6C-26LNRNW | M26X1.5 | M26X1.5 | 18 | 18 | 13.5 | 32.5 | 30 | 49 | 32 | 32 | 36 |
| 6C-30Z | 6C-30LNZ | 6C-30RNW | 6C-30LNRNW | M30X2 | M30X2 | 22 | 22 | 16.5 | 34.5 | 33 | 51 | 36 | 36 | 41 |
| 6C-36Z | 6C-36LNZ | 6C-36RNW | 6C-36LNRNW | M36X2 | M36X2 | 28 | 28 | 18.5 | 35.5 | 35 | 52 | 41 | 41 | 46 |
| 6C-45Z | 6C-45LNZ | 6C-45RNW | 6C-45LNRNW | M45X2 | M45X2 | 35 | 35 | 18.5 | 36.5 | 40 | 58 | 50 | 50 | 55 |
| 6C-52Z | 6C-52LNZ | 6C-52RNW | 6C-52LNRNW | M52X2 | M52X2 | 42 | 42 | 19 | 36 | 42 | 59 | 60 | 60 | 65 |
| 6D-14Z | 6D-14LNZ | 6D-14RNW | 6D-14LNRNW | M14X1.5 | M14X1.5 | 6 | 6 | 12 | 29 | 27 | 44 | 19 | 17 | 19 |
| 6D-16Z | 6D-16LNZ | 6D-16RNW | 6D-16LNRNW | M16X1.5 | M16X1.5 | 8 | 8 | 13 | 29 | 28 | 44 | 22 | 19 | 22 |
| 6D-18Z | 6D-18LNZ | 6D-18RNW | 6D-18LNRNW | M18X1.5 | M18X1.5 | 10 | 10 | 14.5 | 29.5 | 31 | 46 | 24 | 22 | 24 |
| 6D-20Z | 6D-20LNZ | 6D-20RNW | 6D-20LNRNW | M20X1.5 | M20X1.5 | 12 | 12 | 14.5 | 30.5 | 31 | 47 | 27 | 24 | 27 |
| 6D-22Z | 6D-22LNZ | 6D-22RNW | 6D-22LNRNW | M22X1.5 | M22X1.5 | 14 | 14 | 17 | 32 | 35 | 50 | 30 | 27 | 30 |
| 6D-24Z | 6D-24LNZ | 6D-24RNW | 6D-24LNRNW | M24X1.5 | M24X1.5 | 16 | 16 | 16.5 | 31.5 | 35 | 50 | 32 | 30 | 32 |
| 6D-30Z | 6D-30LNZ | 6D-30RNW | 6D-30LNRNW | M30X2 | M30X2 | 20 | 20 | 17.5 | 33.5 | 39 | 55 | 41 | 36 | 41 |
| 6D-36Z | 6D-36LNZ | 6D-36RNW | 6D-36LNRNW | M36X2 | M36X2 | 25 | 25 | 20 | 35 | 44 | 59 | 46 | 46 | 46 |
| 6D-42Z | 6D-42LNZ | 6D-42RNW | 6D-42LNRNW | M42X2 | M42X2 | 30 | 30 | 21.5 | 37.5 | 48 | 64 | 50 | 50 | 50 |
| 6D-52Z | 6D-52LNZ | 6D-52RNW | 6D-52LNRNW | M52X2 | M52X2 | 38 | 38 | 22 | 37 | 53 | 68 | 65 | 60 | 65 |
