Description

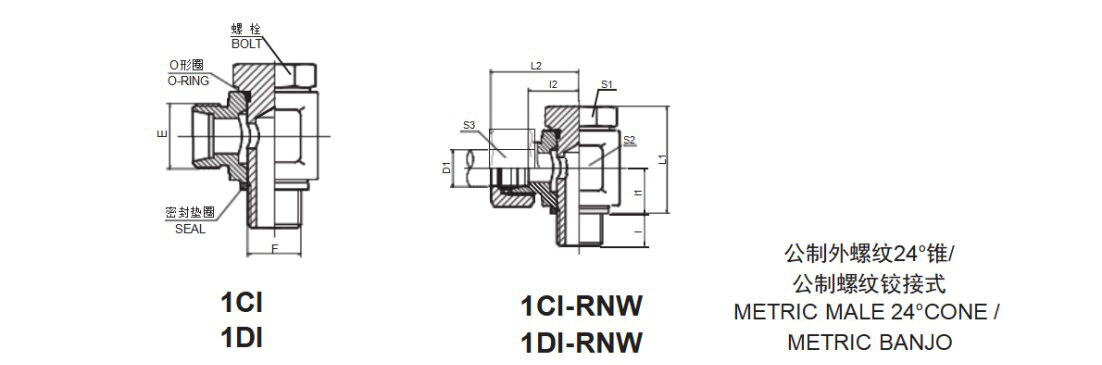

Our Metric Male 24°cone /Metric Banjo connectors offer exceptional sealing performance under high pressure. The combination of metric threading and banjo-style fluid routing allows for 360° positioning flexibility while ensuring tight, vibration-resistant seals. Ideal for systems requiring both compact size and robust operation.

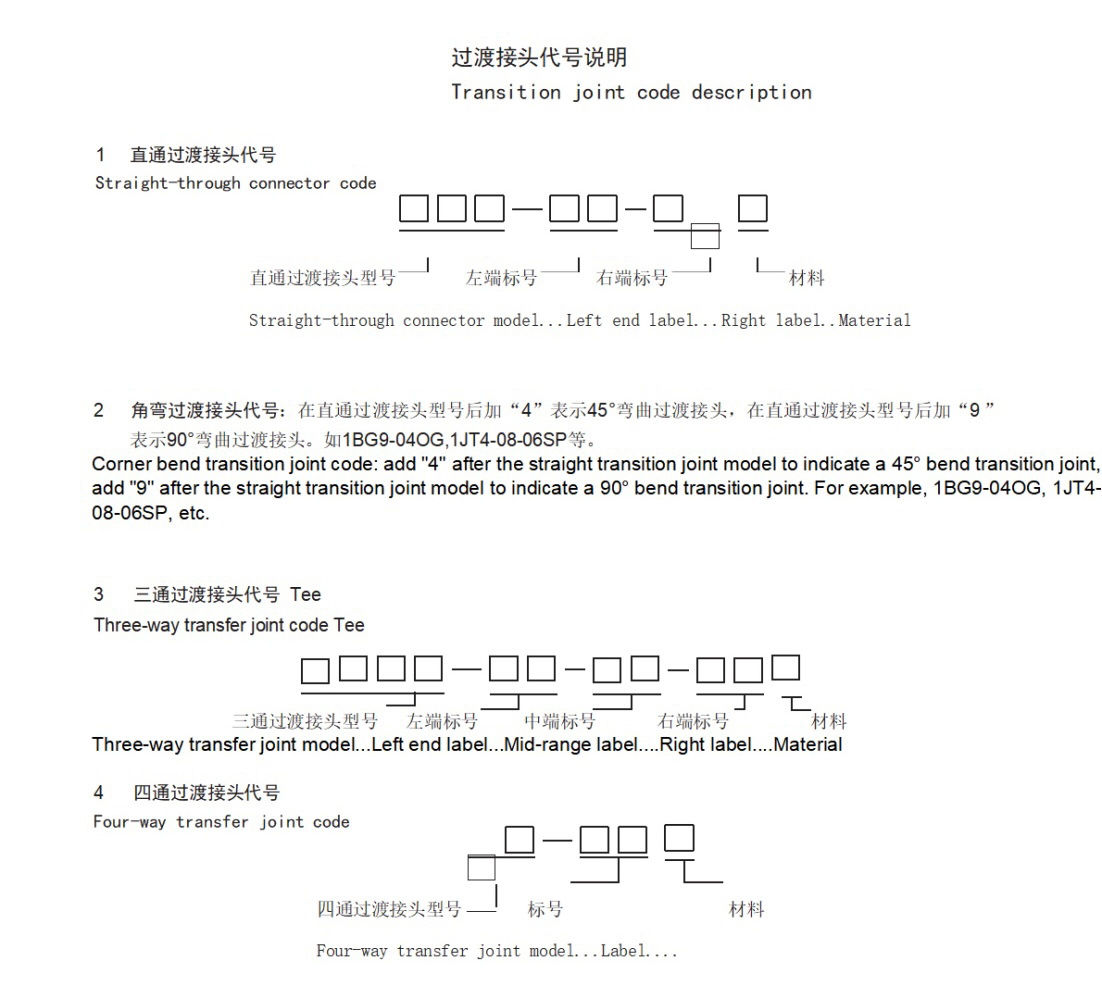

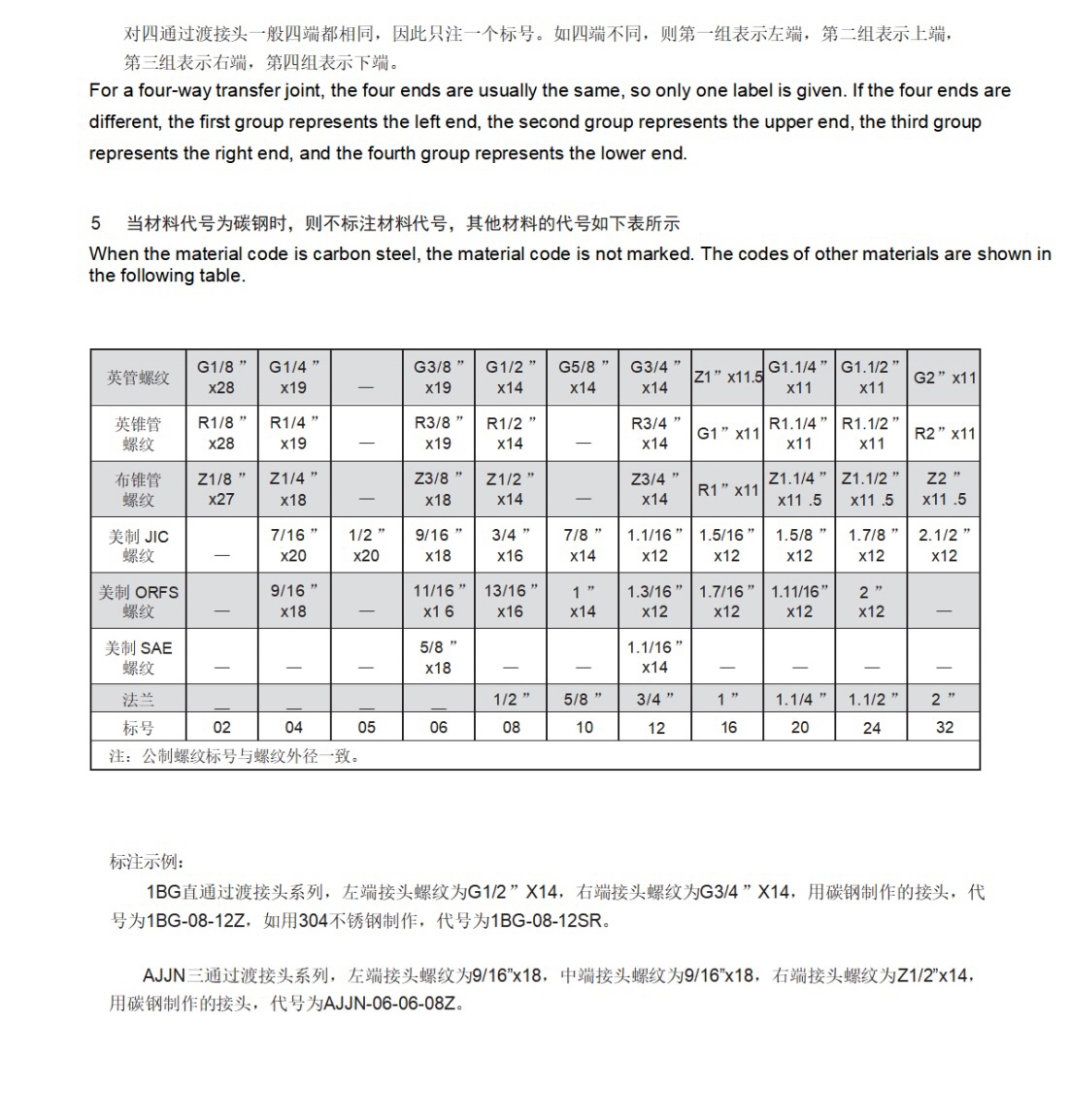

| PART NO. | THREAD | D1 TUBE O.D. | DIMENSIONS | BOLT | O-RING | SEAL | |||||||||
| BODY | ASSEMBLY | E | F | l | l1 | L1 | l2 | L2 | S1 | S2 | S3 | ||||
| 1CI-12-10Z | 1CI-12-10RNW | M12X1.5 | M10X1 | 6 | 10 | 9 | 25.5 | 12 | 27 | 14 | 17 | 14 | 700M-10IZ | O08.1X1.6 | ZHD-10 |
| 1CI-14-12Z | 1CI-14-12RNW | M14X1.5 | M12X1.5 | 8 | 12 | 14.5 | 33 | 14.5 | 29 | 17 | 22 | 17 | 700M-12IZ | O09.3X2.2 | ZHD-12 |
| 1CI-16-14Z | 1CI-16-14RNW | M16X1.5 | M14X1.5 | 10 | 11 | 12.5 | 33 | 16.5 | 31 | 19 | 24 | 19 | 700M-14IZ | O11.3X2.2 | ZHD-14 |
| 1CI-18-16Z | 1CI-18-16RNW | M18X1.5 | M16X1.5 | 12 | 11 | 15 | 39 | 19 | 34 | 22 | 27 | 22 | 700M-16IZ | O13.3X2.2 | ZHD-16 |
| 1CI-22-18Z | 1CI-22-18RNW | M22X1.5 | M18X1.5 | 15 | 12 | 16.5 | 42 | 21.5 | 37 | 24 | 30 | 27 | 700M-18IZ | O15.3X2.2 | ZHD-18 |
| 1CI-26-22Z | 1CI-26-22RNW | M26X1.5 | M22X1.5 | 18 | 12 | 17.5 | 49 | 22 | 38 | 27 | 32 | 32 | 700M-22IZ | O19.3X2.2 | ZHD-22 |
| 1CI-30-26Z | 1CI-30-26RNW | M30X2 | M26X1.5 | 22 | 14 | 22 | 56 | 28.5 | 45 | 36 | 41 | 36 | 700M-26IZ | O23.6X2.9 | ZHD-27 |
| 1CI-36-33Z | 1CI-36-33RNW | M36X2 | M33X2 | 28 | 18 | 30.5 | 71 | 33 | 50 | 41 | 50 | 41 | 700M-33IZ | O29.6X2.9 | ZHD-33 |
| 1CI-45-42Z | 1CI-45-42RNW | M45X2 | M42X2 | 35 | 20 | 35.5 | 82 | 37 | 59 | 50 | 60 | 50 | 700M-42IZ | O38.6X2.9 | ZHD-42 |
| 1CI-52-48Z | 1CI-52-48RNW | M52X2 | M48X2 | 42 | 22 | 40.5 | 93 | 41.5 | 64 | 55 | 70 | 60 | 700M-48IZ | O44.6X2.9 | ZHD-48 |
| 1DI-14-12Z | 1DI-14-12RNW | M14X1.5 | M12X1.5 | 6 | 12 | 14.5 | 33 | 16.5 | 31 | 17 | 22 | 17 | 700M-12IZ | O09.3X2.2 | ZHD-12 |
| 1DI-16-14Z | 1DI-16-14RNW | M16X1.5 | M14X1.5 | 8 | 12 | 14.5 | 33 | 17.5 | 32 | 19 | 24 | 19 | 700M-14IZ | O11.3X2.2 | ZHD-14 |
| 1DI-18-16Z | 1DI-18-16RNW | M18X1.5 | M16X1.5 | 10 | 12 | 17 | 39 | 19.5 | 36 | 22 | 27 | 22 | 700M-16IZ | O13.3X2.2 | ZHD-16 |
| 1DI-20-18Z | 1DI-20-18RNW | M20X1.5 | M18X1.5 | 12 | 12 | 18.5 | 42 | 21 | 37 | 24 | 30 | 24 | 700M-18IZ | O15.3X2.2 | ZHD-18 |
| 1DI-22-20Z | 1DI-22-20RNW | M22X1.5 | M20X1.5 | 14 | 14 | 20 | 46 | 23.5 | 41 | 27 | 32 | 27 | 700M-20IZ | O17.3X2.2 | ZHD-20 |
| 1DI-24-22Z | 1DI-24-22RNW | M24X1.5 | M22X1.5 | 16 | 14 | 17.5 | 49 | 23 | 41 | 27 | 32 | 30 | 700M-22IZ | O19.3X2.2 | ZHD-22 |
| 1DI-30-27Z | 1DI-30-27RNW | M30X2 | M27X2 | 20 | 16 | 22 | 56 | 27.5 | 49 | 36 | 41 | 36 | 700M-27IZ | O23.6X2.9 | ZHD-27 |
| 1DI-36-33Z | 1DI-36-33Z | M36X2 | M33X2 | 25 | 18 | 30.5 | 71 | 32.5 | 57 | 41 | 50 | 46 | 700M-33IZ | O29.6X2.9 | ZHD-33 |
| 1DI-42Z | 1DI-42RNW | M42X2 | M42X2 | 30 | 20 | 35.5 | 82 | 38 | 65 | 50 | 60 | 50 | 700M-42IZ | O38.6X2.9 | ZHD-42 |
| 1DI-52-48Z | 1DI-52-48RNW | M52X2 | M48X2 | 38 | 22 | 40.5 | 93 | 42.5 | 73 | 55 | 70 | 60 | 700M-48IZ | O44.6X2.9 | ZHD-48 |
