Description
High-quality Metric Male 24°cone /Npt Male adapters ensure compatibility with various hydraulic equipment for efficient and safe operations.

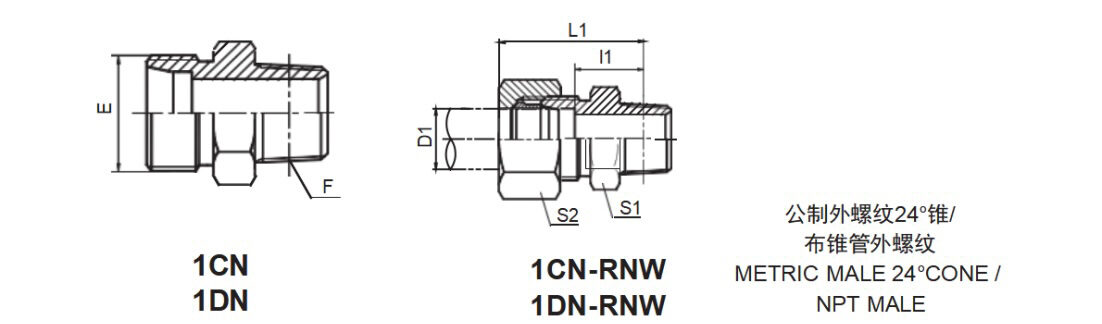

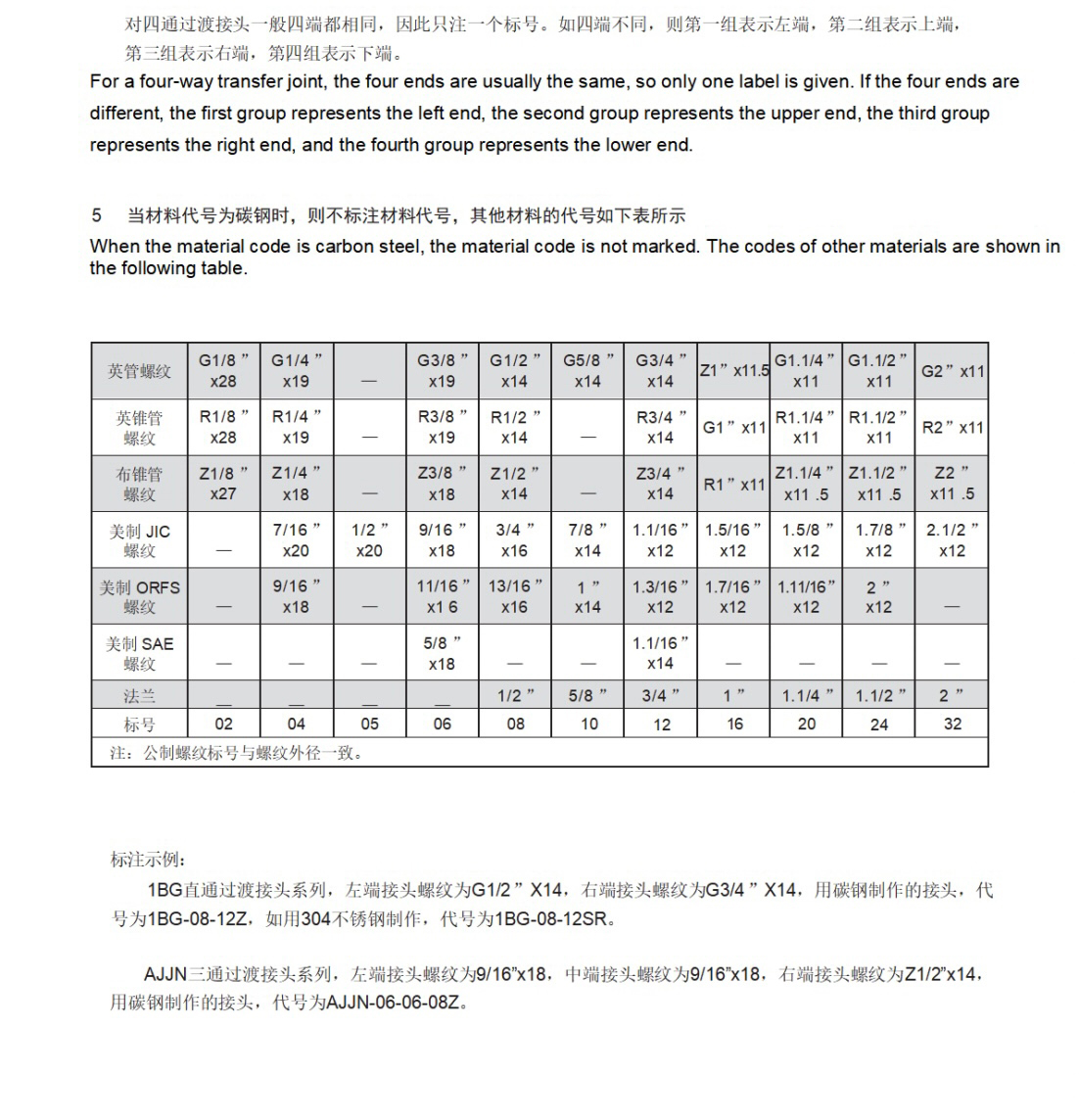

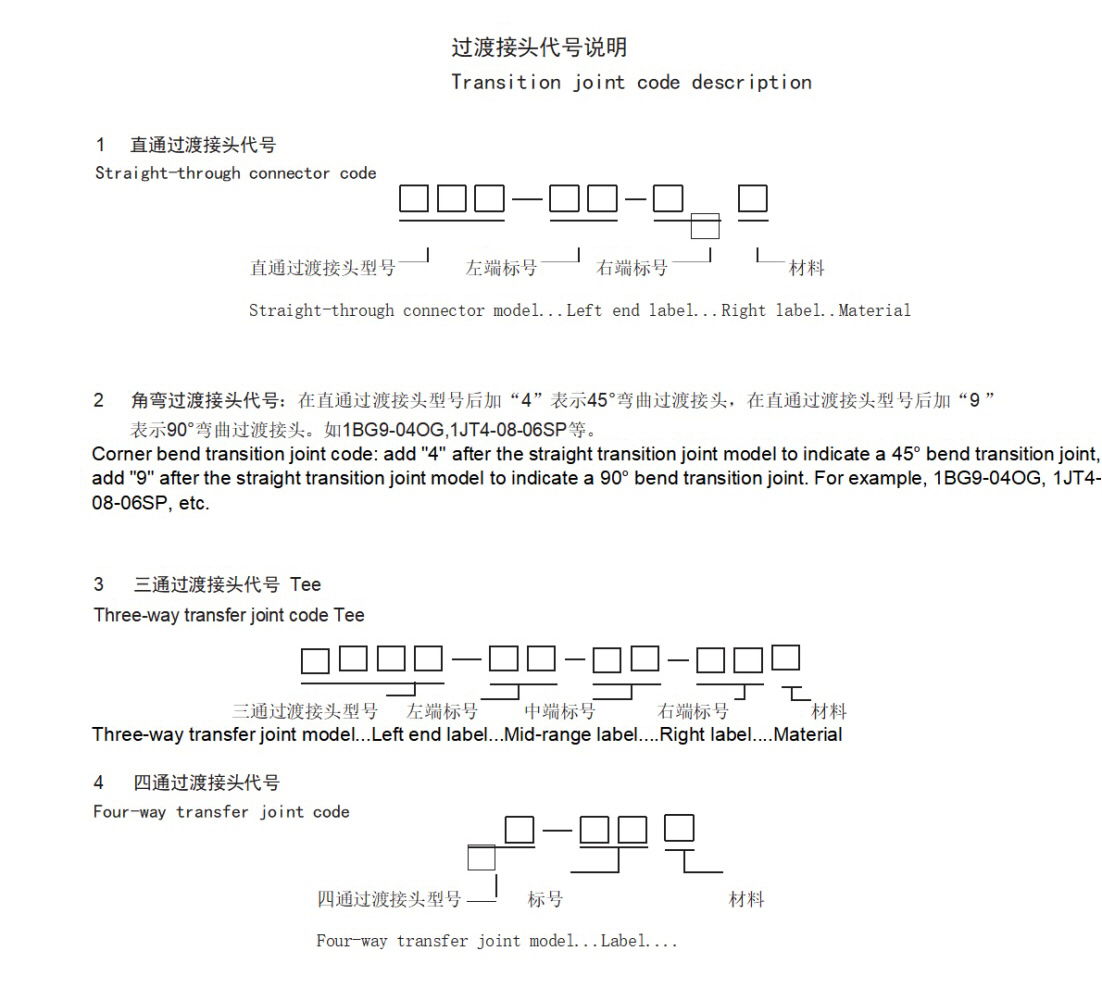

| PART NO. | THREAD | TUBE O.D. | DIMENSIONS | ||||||
| BODY | ASSEMBLY | E | F | D1 | l1 | L1 | S1 | S2 | |
| 1CN-08-02Z | 1CN-08-02RNW | M8X1 | Z1/8″X27 | 4 | 15.0 | 24.4 | 12 | 10 | |
| 1CN-10-02LLZ | 1CN-10-02LLRNW | M10X1 | Z1/8″X27 | 6 | 13.9 | 24.4 | 12 | 12 | |
| 1CN-12-02LLZ | 1CN-12-02LLRNW | M12X1 | Z1/8″X27 | 8 | 14.9 | 25.4 | 12 | 14 | |
| 1CN-12-02Z | 1CN-12-02RNW | M12X1.5 | Z1/8″X27 | 6 | 14.4 | 28.4 | 12 | 14 | |
| 1CN-12-04Z | 1CN-12-04RNW | M12X1.5 | Z1/4″X18 | 6 | 17.2 | 32.2 | 17 | 14 | |
| 1CN-14-04Z | 1CN-14-04RNW | M14X1.5 | Z1/4″X18 | 8 | 17.2 | 32.2 | 17 | 17 | |
| 1CN-16-04Z | 1CN-16-04RNW | M16X1.5 | Z1/4″X18 | 10 | 18.2 | 33.2 | 17 | 19 | |
| 1CN-16-06Z | 1CN-16-06RNW | M16X1.5 | Z3/8″X18 | 10 | 19.9 | 53.0 | 19 | 19 | |
| 1CN-18-04Z | 1CN-18-04RNW | M18X1.5 | Z1/4″X18 | 12 | 19.2 | 34.2 | 19 | 22 | |
| 1CN-18-06Z | 1CN-18-06RNW | M18X1.5 | Z3/8″X18 | 12 | 19.9 | 34.9 | 19 | 22 | |
| 1CN-18-08Z | 1CN-18-08RNW | M18X1.5 | Z1/2″X14 | 12 | 21.4 | 36.4 | 22 | 22 | |
| 1CN-22-08Z | 1CN-22-08RNW | M22X1.5 | Z1/2″X14 | 15 | 22.4 | 37.4 | 24 | 27 | |
| 1CN-22-20Z | 1CN-22-20RNW | M22X1.5 | Z1.1/4″X11.5 | 15 | 29.8 | 37.4 | 46 | 27 | |
| 1CN-26-08Z | 1CN-26-08RNW | M26X1.5 | Z1/2″X14 | 18 | 22.9 | 39.4 | 27 | 32 | |
| 1CN-26-12Z | 1CN-26-12RNW | M26X1.5 | Z3/4″X14 | 18 | 22.4 | 38.9 | 30 | 32 | |
| 1CN-30-08Z | 1CN-30-08RNW | M30X2 | Z1/2″X14 | 22 | 25.2 | 40.5 | 32 | 36 | |
| 1CN-30-12Z | 1CN-30-12RNW | M30X2 | Z3/4″X14 | 22 | 24.4 | 40.9 | 32 | 36 | |
| 1CN-36-16Z | 1CN-36-16RNW | M36X2 | Z1″X11.5 | 28 | 29.8 | 46.3 | 41 | 41 | |
| 1CN-36-20Z | 1CN-36-20RNW | M36X2 | Z1.1/4″X11.5 | 28 | 31.3 | 46.3 | 46 | 41 | |
| 1CN-45-20Z | 1CN-45-20RNW | M45X2 | Z1.1/4″X11.5 | 35 | 30.3 | 51.8 | 46 | 50 | |
| 1CN-52-20Z | 1CN-52-20RNW | M52X2 | Z1.1/4″X11.5 | 42 | 31.8 | 55.8 | 55 | 60 | |
| 1CN-52-24Z | 1CN-52-24RNW | M52X2 | Z1.1/2″X11.5 | 42 | 32.8 | 55.8 | 55 | 60 | |
| 1DN-14-04Z | 1DN-14-04RNW | M14X1.5 | Z1/4″X18 | 6 | 22.2 | 37.2 | 17 | 17 | |
| 1DN-16-04Z | 1DN-16-04RNW | M16X1.5 | Z1/4″X18 | 8 | 22.2 | 37.2 | 17 | 19 | |
| 1DN-18-04Z | 1DN-18-04RNW | M18X1.5 | Z1/4″X18 | 10 | 21.7 | 38.2 | 19 | 22 | |
| 1DN-18-06Z | 1DN-18-06RNW | M18X1.5 | Z3/8″X18 | 10 | 22.4 | 38.9 | 19 | 22 | |
| 1DN-20-04Z | 1DN-20-04RNW | M20X1.5 | Z1/4″X18 | 12 | 23.7 | 40.2 | 22 | 24 | |
| 1DN-20-06Z | 1DN-20-06RNW | M20X1.5 | Z3/8″X18 | 12 | 24.4 | 40.9 | 22 | 24 | |
| 1DN-20-08Z | 1DN-20-08RNW | M20X1.5 | Z1/2″X14 | 12 | 26.4 | 42.4 | 22 | 24 | |
| 1DN-22-08Z | 1DN-22-08RNW | M22X1.5 | Z1/2″X14 | 14 | 27.4 | 45.4 | 24 | 27 | |
| 1DN-24-08Z | 1DN-24-08RNW | M24X1.5 | Z1/2″X14 | 16 | 26.9 | 45.4 | 27 | 30 | |
| 1DN-30-12Z | 1DN-30-12RNW | M30X2 | Z3/4″X14 | 20 | 28.4 | 49.9 | 32 | 36 | |
| 1DN-36-12Z | 1DN-36-12RNW | M36X2 | Z3/4″X14 | 25 | 30.9 | 34.0 | 41 | 46 | |
| 1DN-36-16Z | 1DN-36-16RNW | M36X2 | Z1″X11.5 | 25 | 35.3 | 59.3 | 41 | 46 | |
| 1DN-42-16Z | 1DN-42-16RNW | M42X2 | Z1″X11.5 | 30 | 35.8 | 59.3 | 46 | 50 | |
| 1DN-42-20Z | 1DN-42-20RNW | M42X2 | Z1.1/4″X11.5 | 30 | 36.3 | 62.8 | 46 | 50 | |
| 1DN-52-24Z | 1DN-52-24RNW | M52X2 | Z1.1/2″X11.5 | 38 | 39.8 | 70.8 | 55 | 60 | |
