Description

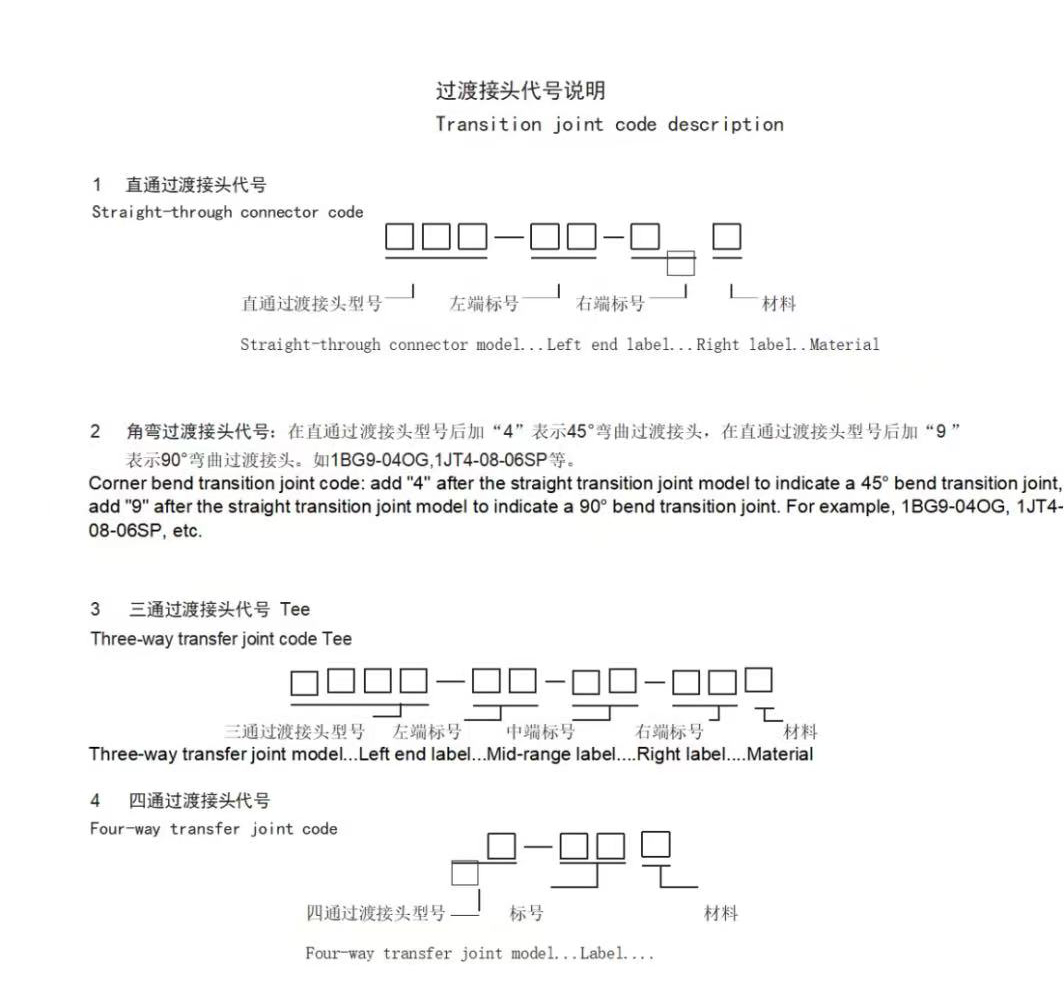

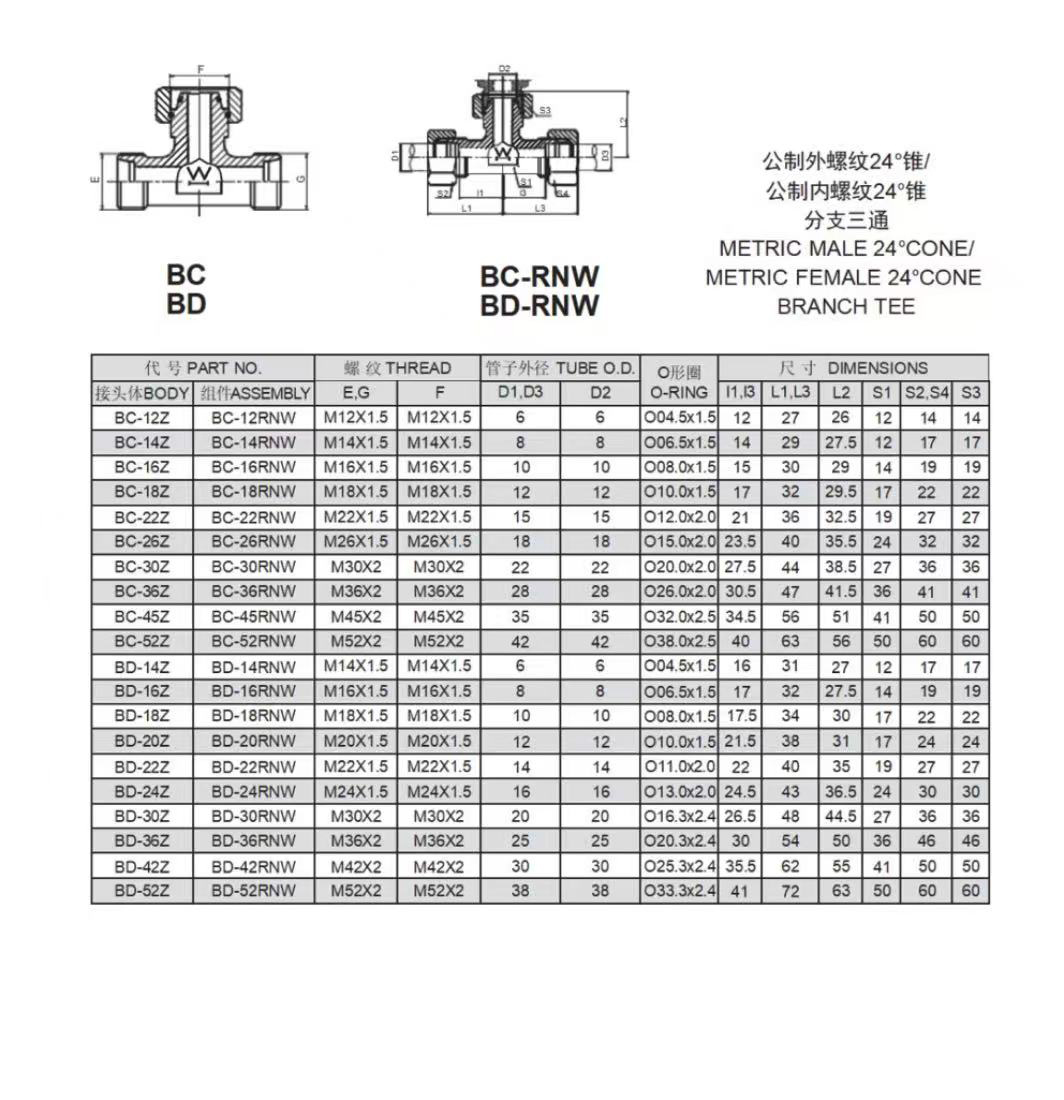

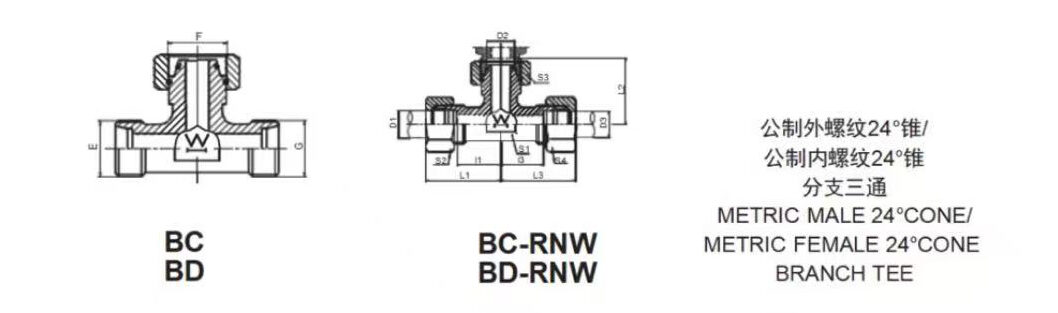

As a transition fitting, the Metric Male 24°cone/ Metric Female 24°cone Branch Tee covers the adaptation of multiple thread diameters such as M12×1.5. With excellent quality — precise processing, reliable sealing, and durable structure, it provides a stable and high – quality solution for various pipeline branch connections.
| PART NO. | THREAD | TUBE O.D. | O-RING | DIMENSIONS | ||||||||
| BODY | ASSEMBLY | E,G | F | D1,D3 | D2 | l1,l3 | L1,L3 | L2 | S1 | S2,S4 | S3 | |
| BC-12Z | BC-12RNW | M12X1.5 | M12X1.5 | 6 | 6 | O04.5×1.5 | 12 | 27 | 26 | 12 | 14 | 14 |
| BC-14Z | BC-14RNW | M14X1.5 | M14X1.5 | 8 | 8 | O06.5×1.5 | 14 | 29 | 27.5 | 12 | 17 | 17 |
| BC-16Z | BC-16RNW | M16X1.5 | M16X1.5 | 10 | 10 | O08.0x1.5 | 15 | 30 | 29 | 14 | 19 | 19 |
| BC-18Z | BC-18RNW | M18X1.5 | M18X1.5 | 12 | 12 | O10.0x1.5 | 17 | 32 | 29.5 | 17 | 22 | 22 |
| BC-22Z | BC-22RNW | M22X1.5 | M22X1.5 | 15 | 15 | O12.0x2.0 | 21 | 36 | 32.5 | 19 | 27 | 27 |
| BC-26Z | BC-26RNW | M26X1.5 | M26X1.5 | 18 | 18 | O15.0x2.0 | 23.5 | 40 | 35.5 | 24 | 32 | 32 |
| BC-30Z | BC-30RNW | M30X2 | M30X2 | 22 | 22 | O20.0x2.0 | 27.5 | 44 | 38.5 | 27 | 36 | 36 |
| BC-36Z | BC-36RNW | M36X2 | M36X2 | 28 | 28 | O26.0x2.0 | 30.5 | 47 | 41.5 | 36 | 41 | 41 |
| BC-45Z | BC-45RNW | M45X2 | M45X2 | 35 | 35 | O32.0x2.5 | 34.5 | 56 | 51 | 41 | 50 | 50 |
| BC-52Z | BC-52RNW | M52X2 | M52X2 | 42 | 42 | O38.0x2.5 | 40 | 63 | 56 | 50 | 60 | 60 |
| BD-14Z | BD-14RNW | M14X1.5 | M14X1.5 | 6 | 6 | O04.5×1.5 | 16 | 31 | 27 | 12 | 17 | 17 |
| BD-16Z | BD-16RNW | M16X1.5 | M16X1.5 | 8 | 8 | O06.5×1.5 | 17 | 32 | 27.5 | 14 | 19 | 19 |
| BD-18Z | BD-18RNW | M18X1.5 | M18X1.5 | 10 | 10 | O08.0x1.5 | 17.5 | 34 | 30 | 17 | 22 | 22 |
| BD-20Z | BD-20RNW | M20X1.5 | M20X1.5 | 12 | 12 | O10.0x1.5 | 21.5 | 38 | 31 | 17 | 24 | 24 |
| BD-22Z | BD-22RNW | M22X1.5 | M22X1.5 | 14 | 14 | O11.0x2.0 | 22 | 40 | 35 | 19 | 27 | 27 |
| BD-24Z | BD-24RNW | M24X1.5 | M24X1.5 | 16 | 16 | O13.0x2.0 | 24.5 | 43 | 36.5 | 24 | 30 | 30 |
| BD-30Z | BD-30RNW | M30X2 | M30X2 | 20 | 20 | O16.3×2.4 | 26.5 | 48 | 44.5 | 27 | 36 | 36 |
| BD-36Z | BD-36RNW | M36X2 | M36X2 | 25 | 25 | O20.3×2.4 | 30 | 54 | 50 | 36 | 46 | 46 |
| BD-42Z | BD-42RNW | M42X2 | M42X2 | 30 | 30 | O25.3×2.4 | 35.5 | 62 | 55 | 41 | 50 | 50 |
| BD-52Z | BD-52RNW | M52X2 | M52X2 | 38 | 38 | O33.3×2.4 | 41 | 72 | 63 | 50 | 60 | 60 |
