Description
For buyers looking to ensure system integrity, the Metric Lock Nut Iso 8434-1 delivers reliable, ISO 8434-1-compliant performance in hydraulic and pneumatic assemblies. It guarantees vibration resistance, precise fitting, and compatibility with a wide range of tube adapters, making it perfect for long-term use.

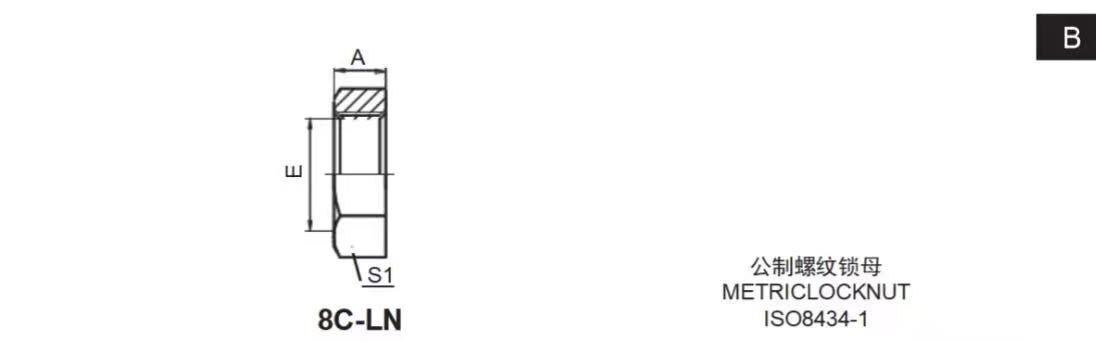

| PARTNO. | THREAD | DIMENSIONS | ||||||||
| E | A | S1 | ||||||||
| 8C-12LNZ | M12X1.5 | 6 | 17 | |||||||
| 8C-14LNZ | M14X1.5 | 6 | 19 | |||||||
| 8C-16LNZ | M16X1.5 | 6 | 22 | |||||||
| 8C-18LNZ | M18X1.5 | 6 | 24 | |||||||
| 8C-20LNZ | M20X1.5 | 6 | 27 | |||||||
| 8C-22LNZ | M22X1.5 | 7 | 30 | |||||||
| 8C-24LNZ | M24X1.5 | 7 | 32 | |||||||
| 8C-26LNZ | M26X1.5 | 8 | 36 | |||||||
| 8C-30LNZ | M30X2 | 8 | 41 | |||||||
| 8C-36LNZ | M36X2 | 9 | 46 | |||||||
| 8C-42LNZ | M42X2 | 9 | 50 | |||||||
| 8C-45LNZ | M45X2 | 9 | 55 | |||||||
| 8C-52LNZ | M52X2 | 10 | 65 | |||||||
